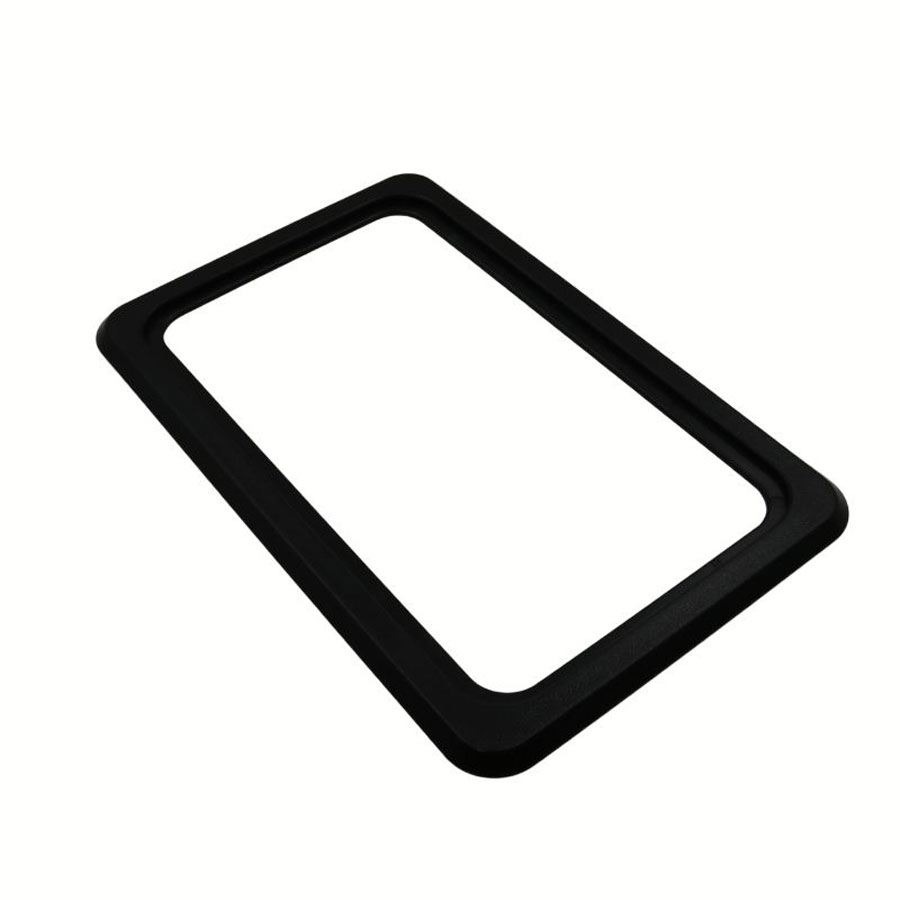

Rhino x Caffewerks Mini Spin Trim Adapter

The Rhino x Caffewerks Spinjet Mini Pitcher Rinser is built for flexible installation, and the adaptor plate makes it even easier to achieve a clean, professional fit in your café bench or countertop. Designed to pair perfectly with the Spinjet Mini Rinser sink, this adaptor plate ensures stability, neat presentation, and compatibility with retrofit installations. It also allows direct installation cut into a benchtop, giving you more options for how you set up your rinser station.

Features:
- Seamless Fit: Designed specifically for the Rhino x Caffewerks Spinjet Mini Rinser sink
- Easy Installation: Supports direct cut-in benchtop installation and countertop mounting
- Retrofit Ready: Fits existing 150mm / 6"x6" Spinjet Rinser cut-outs. You will need to cut extra bench to allow for installation. Instructions below.
- Professional Finish: Provides a clean and stable edge for a neat, flush look
- Durable Construction: Built from quality materials to handle busy café environments

Specifications
- Compatibility: Rhino x Caffewerks Spinjet Mini Pitcher Rinser
- Retrofit to suit 150mm sinks: Short side aligns with 150mm, only trim the long side of your bench.
- Application: Direct benchtop cut-in
- Material: Heavy-duty stainless steel construction

To retrofit, follow the below steps:
1. Removal of the Existing Unit
- Turn off the water supply to your existing RHPR150 (or square sink of similar design), purging any excess water from the valve.
- Disconnect the plumbing lines to the unit and remove the pan from your bench top.
2. Mark the New Opening
- Position the trim on the benchtop in your desired location, ensuring that it meets your workflow requirements.
- Use the trims ID (Internal diameter) as a template to mark out the area to be cut, leaving enough bench for the trims' outer diameter to be attached to.
3. Cut the Bench
- Carefully cut out the bench according to the marked layout. It is best to cut inside the line and work your way out than to cut away too much benchtop, leaving little purchase area for the trim to attach to.
4. Secure the Trim
- Fasten the trim to the benchtop using silicone or adhesive with suitable properties that much the plastic of the trim and your bench top material.
- Allow time for the adhesive to cure.
5. Install the RHCWMINI Sink
- Place the RHCWMINI rinser tray into the opening with the trim in place.
- Connect plumbing as required. We recommend leaving the rinser tray unsecured for ease of access when installing the plumbing and for future servicing requirements.
